    MEASTEK MDP5150C 200MHz High Voltage Differential Probe 1500V Range Dual Attenuation Ratio BNC Full Compatible Anti-interference

    Ask Lasest Price
    Brand Name : MEASTEK
    Model Number : MDP5150B
    Certification : CE
    Payment Terms : ,T/T,Western Union,MoneyGram
    Supply Ability : 1000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    MEASTEK MDP5150C 200MHz High Voltage Differential Probe 1500V Range Dual Attenuation Ratio BNC Full Compatible Anti-interference

    MEASTEK MDP5150C 200MHz High Voltage Differential Probe 1500V Range Dual Attenuation Ratio BNC Full Compatible Anti-interference


    Key Features:

    [High-voltage test pain point terminator]
    ±1500V over-range design solves the problem of inverter bus voltage measurement
    200MHz bandwidth + 1% accuracy, accurately restore PWM waveform details


    [Anti-interference golden combination]
    80dB CMRR (DC) + 5MΩ high impedance, suppress common mode noise
    2pF ultra-low capacitance, avoid high-frequency signal distortion (measured rising edge error <0.3ns)


    [One-button intelligent operation]
    Automatic zeroing function, complete temperature drift calibration in 5 seconds
    Light-touch button design, 100,000 life test more durable


    [Multi-scenario adaptation]
    Charging pile PFC circuit high-voltage differential measurement
    Switching power supply transformer primary side waveform analysis
    Variable frequency home appliance motor drive signal debugging


    Specifications

    Model

    MDP5150C

    Bandwidth (-3dB)

    200 MHz

    Rise time (ns)

    ≤1.8

    Accuracy

    1%

    Attenuation ratio

    50X/500X

    Maximum differential measurement voltage

    (DC+Peak AC)

    50X ±150Vpk

    500X ±1500Vpk

    Effective value

    50X ±106Vrms

    500X ±1060Vrms

    Maximum input voltage to ground (Vrms)

    600V CATII

    1000V CATI

    Common mode voltage(DC+Peak AC)

    ±1500Vpk

    Input ImpedanceSingle-ended to ground 2.5MΩ
    Two input terminals 5MΩ
    Input CapacitanceSingle-ended to ground <4pF
    Two input ends <2pF

    CMRR

    DC >80dB
    100kHz>60dB
    1MHz>50dB
    Noise (Vrms)
    50X <50mV
    500X <300mV
    Delay timeHost: about 9ns
    BNC cable 1m: about 5ns
    Overload indicator voltage threshold
    50X >150Vpk
    500X >1500Vpk
    Overload indicator light (red light)Yes
    Auto-save functionYes
    Terminal load requirement≥100kΩ
    power supplyUSB 5V/1A adapter



    Probe Standard Accessories


    NameObjectParameters
    Alligator Clips

    CATIII 1000V

    CATIV 600V

    Piston probe clamp

    CATIII 1000V

    Test Hook

    CATII 1000V

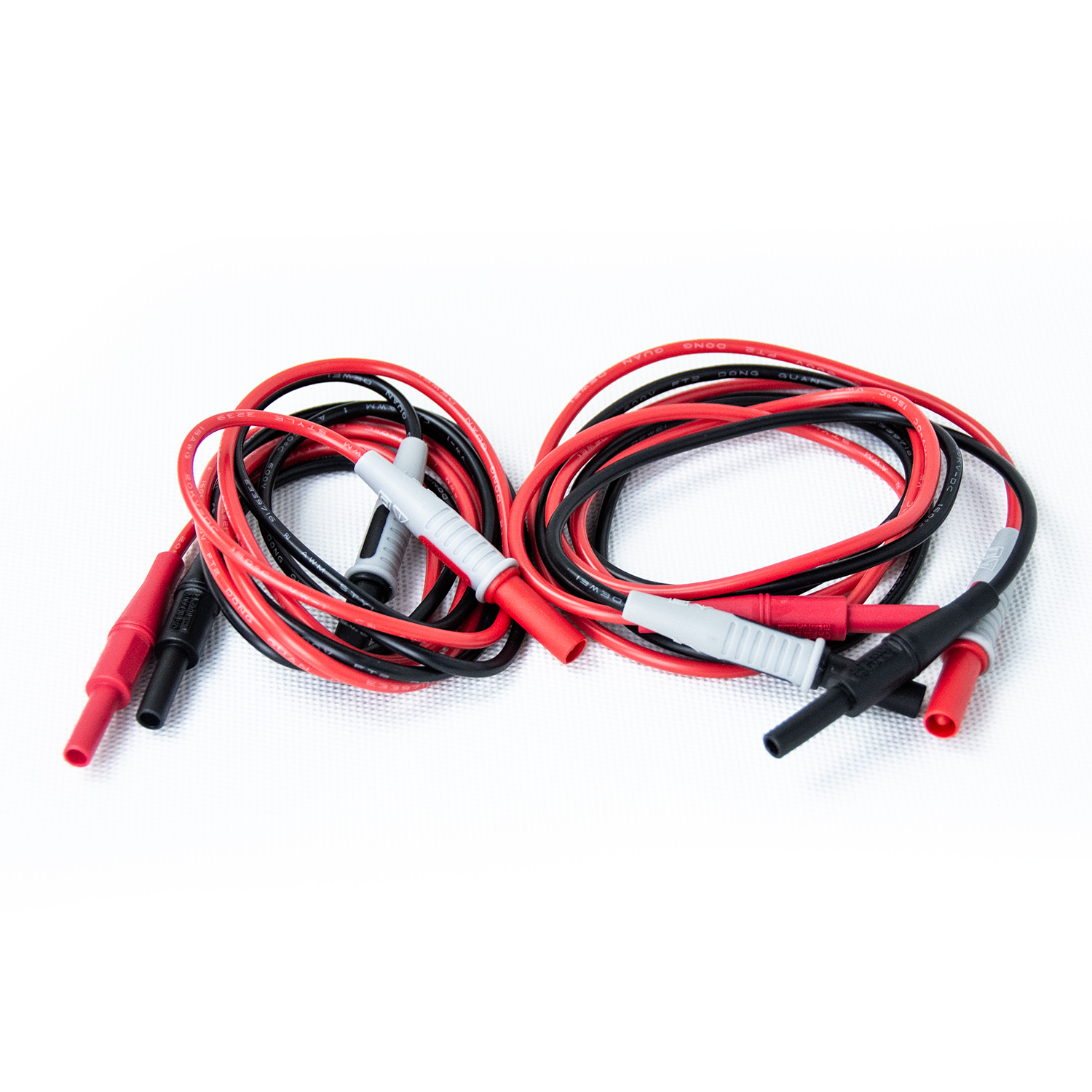

    Input extension cord

    CATIII 1000V

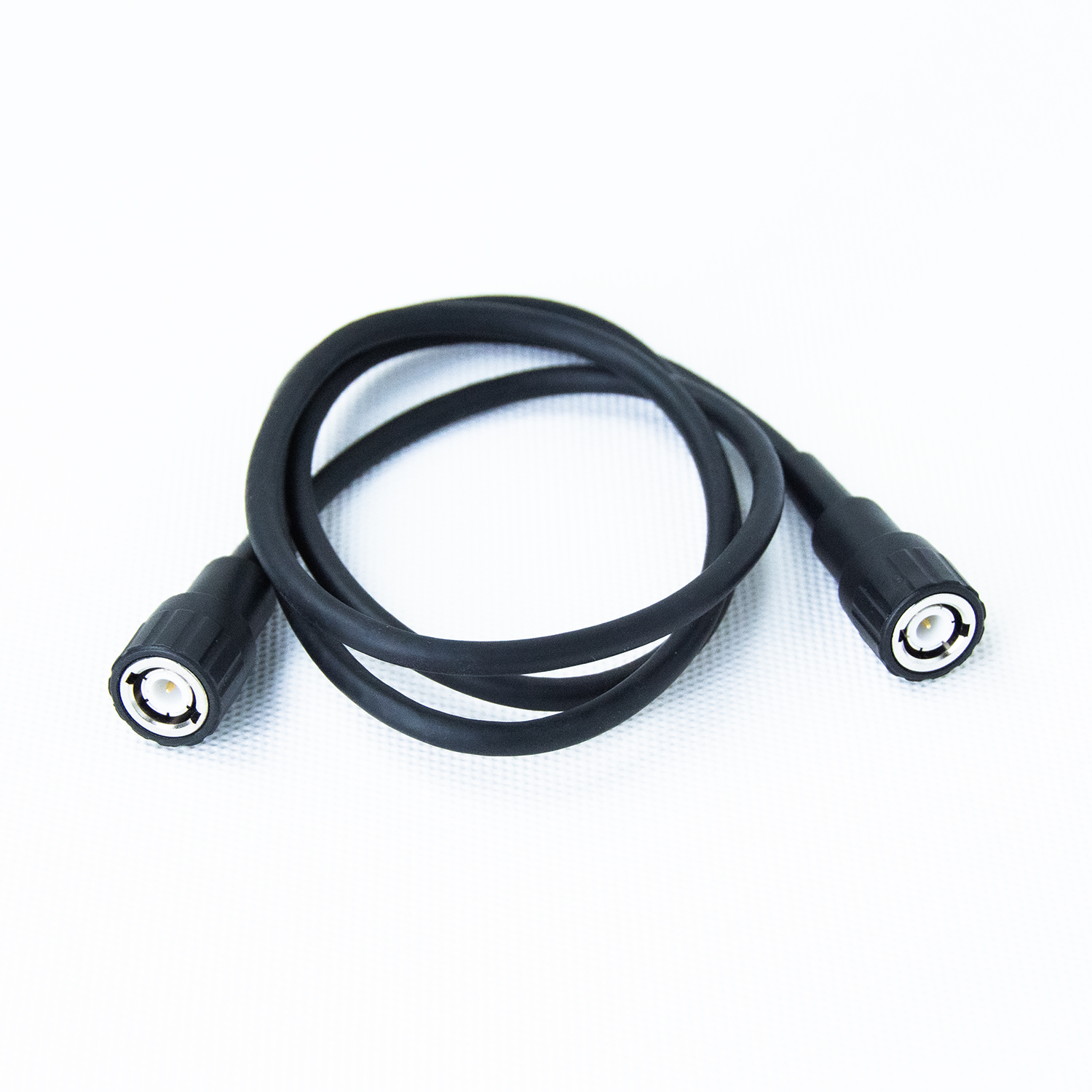

    BNC output cableBNC male to male output cable (length 1 meter)
    Power output lineLength 1 meter
    Power adapter

    USB 5V/1A


    WARNING: To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C probes or hook tip accessories on CAT III or CAT IV circuits. To avoid the risk of electric shock or fire, do not use the MDP5700A/ MDP5700B/ MDP5700C test probes or hook tip accessories on circuits above 7000V when using the MDP5070A/ MDP5070B/ MDP5070C probes.
    Use only accessories rated for the application. Substituting other accessories may create a risk of electric shock or burns. Keep the probe body and accessories clean to reduce the risk of electric shock from conductive surfaces.



    Packing List

    NameQuantity
    High-voltage differential probe1 piece
    Alligator Clips1 pair
    Piston probe clamp1 pair
    Test hook1 pair
    Input extension cable1 pair
    BNC output cable1 piece
    Power output cable1 piece
    Power adapter1 piece
    Test report1 serving
    Warranty card1 piece
    Probe box1 piece
