MEASTEK HCTM0600A high current measurement high frequency flexible probe, 10mV/A sensitivity, 0.6KA peak response, low frequency 2.3Hz accurate capture, low noise 10mV Vpp, good helper for capacitor ripple measurement

Sensitively perceive large current changes

The sensitivity is 10mV/A, which is particularly suitable for high-precision measurement of larger currents. It can quickly and accurately perceive the changes in current, provide you with detailed current data, and help you accurately evaluate the operating conditions of high-power equipment. ​

Low-noise stable output

The maximum noise is 10mV Vpp, which ensures the stability and reliability of the measurement results. During the measurement process, it effectively reduces noise interference, allowing you to obtain pure and accurate current signals, providing a solid data foundation for subsequent data analysis and decision-making. ​

Good low-frequency characteristics

The low-frequency bandwidth -3dB is 2.3Hz, which can well capture low-frequency current signals. For some equipment running in the low-frequency band, such as low-frequency motors, large transformers, etc., it can accurately measure their currents, helping you to discover potential problems with the equipment in a timely manner. ​

Safe and reliable insulation design

The insulation voltage value is 2KV, which provides reliable safety protection for your use in high-voltage environments. Strict insulation standards effectively prevent electric shock accidents, ensure the safety of you and your equipment, and let you have no worries.​

Flexible operation to adapt to various scenarios

The probe design is flexible and easy to perform measurement operations in various complex wiring environments and equipment structures. Whether it is circuit detection in a small space or multi-part measurement of large equipment, it can be easily completed to improve work efficiency.

Application scenarios

Industrial heating equipment manufacturers, testing the working current of heating elements; elevator control system testing, monitoring the current of motors and control circuits; large air-conditioning unit maintenance, measuring the current of components such as compressors.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

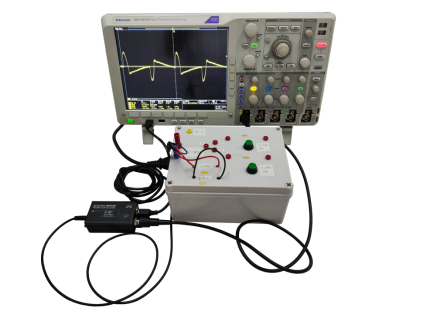

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

Packing List
