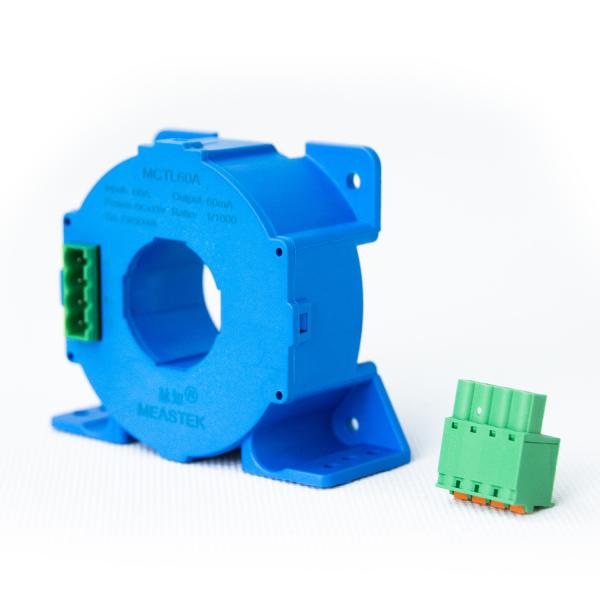

MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control

    Buy cheap MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control from wholesalers

    Buy cheap MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control from wholesalers
    • Buy cheap MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control from wholesalers

    MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control

    Ask Lasest Price
    Brand Name : MEASTEK
    Model Number : MCTL60A
    Payment Terms : T/T,Western Union,MoneyGram
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control

    Mastek MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control


    High Accuracy & Wide Bandwidth: 0.1% precision with DC to 100KHz bandwidth, ideal for dynamic current measurement in power systems and industrial drives.


    Advanced Core Technology: Utilizes closed-loop fluxgate and multi-point zero-flux technology for stable output and minimal temperature drift.


    Robust Safety: 5KV insulation voltage and UL94-V0 certified enclosure, ensuring safe operation in high-voltage environments.


    Flexible Installation: Compact design with Φ30mm aperture and multiple mounting holes, suitable for space-constrained applications.


    Global Compliance: Meets EN50178 standards, widely used in renewable energy, medical equipment, and smart grid monitoring.


    Specifications

    ModelMaximum currentAccuracyBandwidthCurrent transfer ratio
    DCRMS

    MCTL60A

    60A

    60A

    0.1%

    100KHz

    1:1000


    Electrical properties

    ItemSymbolTest ConditionsMinimumNominalMaximumUnit
    Maximum continuous DC current

    IPN_DC

    -

    60

    -

    300

    Adc

    Corresponding measurement current range (Arms)

    IP

    -

    60

    -

    300

    Aac

    Primary-secondary conversion ratio

    KN

    -

    1:1000

    -

    1:2000

    -

    Rated output current (mArms)

    Isn

    Primary rated current

    60

    -

    150

    mA

    Power supply voltage (±5%)

    Vc

    -

    -

    ±15

    -

    V

    Power consumption

    Ic

    -

    15mA +Is

    -

    15mA +Is

    MA
    Load resistance (@Vc=±15V)

    RL

    -

    ≤50Ω(@Ip=DC60A)

    -

    ≤50Ω(@Ip=DC300A)

    Ω

    Secondary resistance

    Rs

    -

    ≈18

    -

    ≈18

    Ω

    Power frequency withstand voltage (50HZ, 1min)

    Vd

    -

    -

    5

    -

    KV

    Insulation resistance

    Ri

    -

    -

    >2000MΩ@DC500V

    -

    Ω


    Accuracy Measurement

    ItemSymbolTest ConditionsMinimumNominalMaximumUnit
    Accuracy (@Ta = +25℃)

    XG

    Input DC, full temperature range

    -

    -

    0.1

    %

    Linearity error

    EL

    Full range

    -

    -

    0.005

    %

    Offset current (@Ta =+25℃)

    Ioff

    Full temperature range

    -

    -

    ≤|±0.004|μA

    μA

    Response time

    Tr

    di/dt=100A/μs, rise to 90% IPN

    -

    -

    ≤1

    μs

    Following speed

    di/dt

    -

    >100

    -

    >100

    A/μs

    Frequency range

    f

    -

    0

    -

    100

    KHz


    General Features

    ItemSymbolTest ConditionsMinimumNominalMaximumUnit
    Operating temperature range

    Ta

    -

    -40

    -

    +70

    Storage temperature range

    Ts

    -

    -45

    -

    +85

    Working humidity (no condensation)

    Hw

    -

    20

    -

    90

    %

    Weight

    W

    -

    -

    ±203

    -

    g
    Execution standard

    St

    EN50178

    Casing material

    Encl

    Compliant with UL94-V0


    Structure Diagram

    MASTEK MCTL60A High Precision Current Sensor 60A DC-100KHz , 0.1% Accuracy for Power Analysis & Industrial Control

    Basic dimensional error

    ±0.2mm

    Primary aperture

    Φ30mm

    Disc installation

    Bottom:6 x Φ4mm Side:4 x Φ4mm

    Output terminal

    4-position plug-in terminal


    Packing List

    NameQuantity
    Current sensor body1 piece
    Electronic manual1 copy
    Warranty card1 piece
