Product Description:

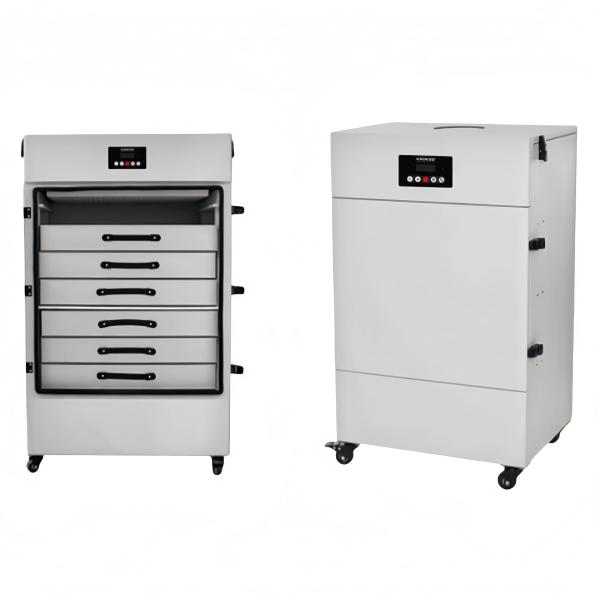

The FES600 Industrial Dust Collection Equipment is a
high-performance solution designed for managing and controlling
airborne dust and particulates in industrial environments.
Its robust design and advanced filtration system make it suitable
for a wide range of applications, ensuring clean and safe
workspaces while meeting industry standards for air quality.
1. The fuselage adopts an all-metal integrated structure.
2. Digital display makes parameters more intuitive.
3. Can be timed and operated remotely with remote control.
4. The whole machine is equipped with ten levels of adjustment,
making it easy to adjust the air volume according to needs.
5. High-performance brushless motor runs smoothly and can work
continuously for 24 hours.
6. Five-layer tower filter design, with a fireproof steel mesh on
the top to effectively intercept laser sparks.
7. Filter plug alarm, automatically detects changes in filter layer
pressure difference and sends out audible and visual alarm signals.
8. Standard 110MM high-temperature 3-meter telescopic tube, good
compatibility, simple and convenient connection, and long service
life.
9. The bottom of the machine is equipped with a silent PU wheel
with locking function, which makes it easy to adjust the action as
needed and saves worry.
Technical Parameters:
| Model | FES600 |
| Color | White |
| Noise | <75dB |
| Filtering Efficiency | 0.3um 99.99% |
| Vac | AC220V 50Hz |
| Power | 600W |
| Air Volume | 620m³/h |
| Filter Layer | 7 Stage |
| Weight | 3M telescopic pipe (can be customized) |
| Maximum negative pressure | 2600pa |
| Air inlet interface | ∅100MM |
| Dimensions(mm) | L580*W415*H925MM |
| Weight | 55Kg |
Package contents:
1 * Fume Extractor
1 * Smoking Pipe
7 * Stage Filter
1* Power Cord
1 * Manual
Applications:
Metalworking Industry
Ideal for capturing dust and fumes generated during grinding,
welding, cutting, and polishing processes.
Woodworking Industry
Suitable for removing sawdust, wood chips, and fine particles
produced during sawing, sanding, and routing operations.
Pharmaceutical and Chemical Industry
Essential for controlling fine dust and powders during mixing,
packaging, and chemical processing.
Electronics Manufacturing
Helps in capturing fine particles generated during soldering, laser
etching, and PCB manufacturing.
Food Processing Industry
Used to collect dust and particulates from flour, sugar, spices,
and other food ingredients during processing and packaging.
Automotive Industry
Removes dust from sanding, painting, and assembly processes to
ensure quality and safety.
Laboratory Environments
Provides clean air by filtering out harmful particulates in
research, testing, and sample preparation.
