• Integrated body design, compact structure, beautiful appearance,
small footprint.

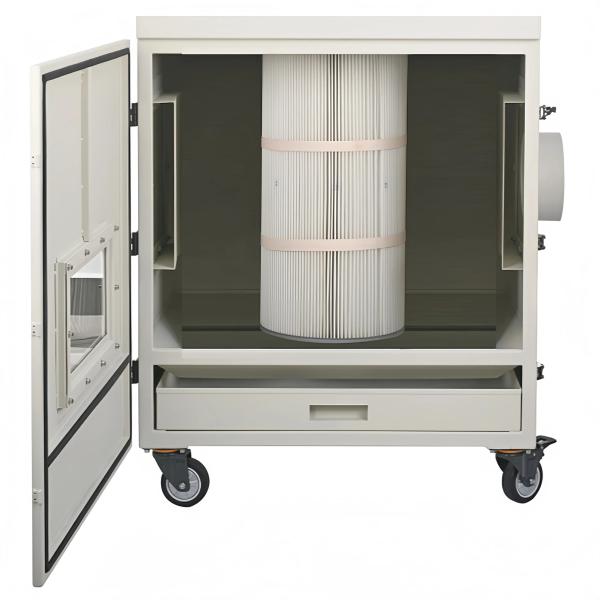

• The filter element adopts foldable suspension design, high
filtration accuracy and large filtration area.
• Customized spiral nozzle, pneumatic pulse jet cleaning, simple
and efficient.
• The filter box is designed with a perspective window to check the
dust condition at any time.
• Siemens motor, sufficient power, stable performance, smooth
operation.
• Electrically controlled main power switch, thermal overload
protection, independent control of ash cleaning switch.
• Customized turbocharger impeller, low running noise, good dynamic
balance, high negative pressure.
• The filter adopts imported polyester fiber PTFE coating material.
• Air intakes are reserved on the left and right sides to
facilitate machine connection according to the site.
• Equipped with a large capacity dust collection box to facilitate
the storage of dust collected during work.
• The bottom is equipped with a universal moving caster design for
easy movement and adjustment.
Product Specification
| Input Power | AC380V/50Hz | Power | 1.1KW |
| Max Flow | 1500 M³/h | Filter Area | 11m² |
| Max Negative Pressure | 18000 | Noise | 85dB |
| Filtration Accuracy | 0.3 μm | Filter Element Material | Polyester Fiber PTFE Coating |
| Number Of Filter Element | 1 PCS | Inlet Diameter | 100 |
| Outlet Diameter | 250mm | Dust Collection Box | 38L |
| Size | L700*W650*H1700MM | Product Weight | 198 |
| Packaging Details | Packed in 82*75*190cm wooden cases | Supply Ability | 10000 |
Applications of FES1100 Industrial Dust Collection System:
Metalworking and Welding
Captures welding fumes, grinding dust, and metal shavings during
processes like cutting, polishing, and brazing.
Woodworking
Removes sawdust, wood chips, and fine particles from sawing,
sanding, and shaping activities.
Chemical and Pharmaceutical Industry
Essential for controlling powder and chemical dust during
manufacturing, mixing, and packaging.
Construction and Renovation
Handles dust generated from masonry work, concrete grinding, and
demolition activities.
Electronics Manufacturing
Filters particulates from soldering, PCB manufacturing, and laser
engraving processes.
Automotive and Aerospace
Ideal for sanding, painting, and assembly operations requiring
precise dust control.
Food Processing
Collects airborne particles like flour, sugar, and spice dust,
maintaining hygiene standards.
Laboratory and Cleanroom Applications
Provides contamination-free environments by removing particulates
and airborne impurities.
Application Scenarios:
Centralized Dust Collection: Perfect for large-scale operations requiring dust collection from
multiple workstations.
Localized Control: Suitable for individual workspaces with high dust or fume
generation.
Portable Usage: Easy to relocate for on-demand dust collection in specific areas.
The FES1100 Industrial Dust Collection System combines power, efficiency, and versatility, making it a top
choice for industries looking to maintain clean, safe,
and compliant work environments.
