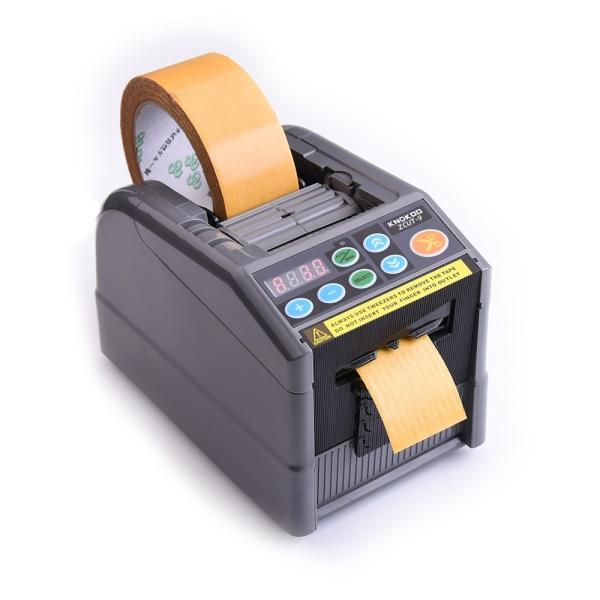

KNOKOO Tape Cutter Machine ZCUT-9 Automatic Tape Dispenser 6 Lengths Memory Function

Product Description

The ZCUT-9 Automatic Tape Dispenser is a versatile and efficient tool designed to simplify the cutting process for a wide variety of adhesive and non-adhesive materials. Built with precision, safety, and convenience in mind, this dispenser is an ideal choice for professional and industrial applications. Its robust features and user-friendly design ensure consistent performance and enhanced productivity.

1. Material

• The ZCUT-9 is constructed from anti-static ABS material, offering excellent durability and protection against static interference. This ensures the machine is suitable for sensitive environments such as electronics assembly or laboratories.

2. Accessories

The dispenser comes with essential accessories to enhance its functionality and ease of use, including:

• Separator: Allows simultaneous cutting of two tape rolls.

• Tweezers: Useful for handling small pieces of tape.

• Oil Scraper: Ensures smooth and clean operation by maintaining the cutting blades.

3. Compatibility

• Adhesive Materials:The ZCUT-9 can handle a wide range of adhesive tapes, including:

  • Protective films

  • Aluminum and copper foil

  • Tubes and plastic bands

  • Velcro tape

  • Ribbons

• Non-Adhesive Materials:It is equally effective for non-sticky materials such as:

  • Protective films

  • Aluminum and copper foil

  • Tubes and plastic bands

  • Velcro tape

  • Ribbons

Product parameters:

Product use

1. Key Functions

• Single-Length Cycling Cutting:

  • Cuts tapes to a specific length in repeated cycles.

  • Programmable to cut up to 999 pieces, with a signal display indicating the selected quantity.

• Single-Length Overlaid Cutting:

  • Allows settings for up to 6 different lengths to meet varied operational needs.

• Multi-Length Cycling Cutting:

  • Preset the desired quantity (up to 999 pieces) and let the machine automatically cut the required number before stopping.

• Multi-Length Overlaid Cutting:

  • Set a maximum of 6 different lengths to cut tapes in sequential patterns, enabling greater flexibility for complex tasks.

2. Features

• Universal Roll Support: Accommodates rolls of any size without the need for a bobbin.

• Flexible Cutting Range: Adjusts lengths from 5 mm to 999 mm, making it suitable for both precise and bulk tasks.

• Memory Function: Saves up to 6 different lengths, allowing quick reprogramming for repeat tasks.

• Dual Roll Capability: Supports cutting of two rolls simultaneously, improving efficiency.

• Built-In Accessories: Includes tweezers, oil, and separator for seamless operation.

• Advanced Sensors: Equipped with dual photo sensors for precision cutting.

• Loop Counter: Tracks preset quantities for accurate batch processing.

3. Safety Features

The ZCUT-9 incorporates three levels of safety mechanisms to ensure user protection:

• Safety Baffle: Shields users from the scissors during operation.

• Automatic Stop Sensor: The machine stops automatically if blocked by adhesive tape, preventing damage or accidents.

• Restart Confirmation: After an obstruction is removed, the machine requires manual reactivation by pressing the start button, ensuring complete safety before resumption.

4. Operation Steps

• Power On: Connect and switch on the machine.

• Prepare the Roller: Press the "Hold Down Roll Release" to open the roller unit.

• Load the Tape: Place the tape roll into the dispenser.

• Feed the Tape: Press the "FWD Button" until the tape emerges from the outlet.

• Secure the Roller: Close the "Hold Down Roller Unit."

• Start Cutting: Activate the machine to begin tape cutting.
